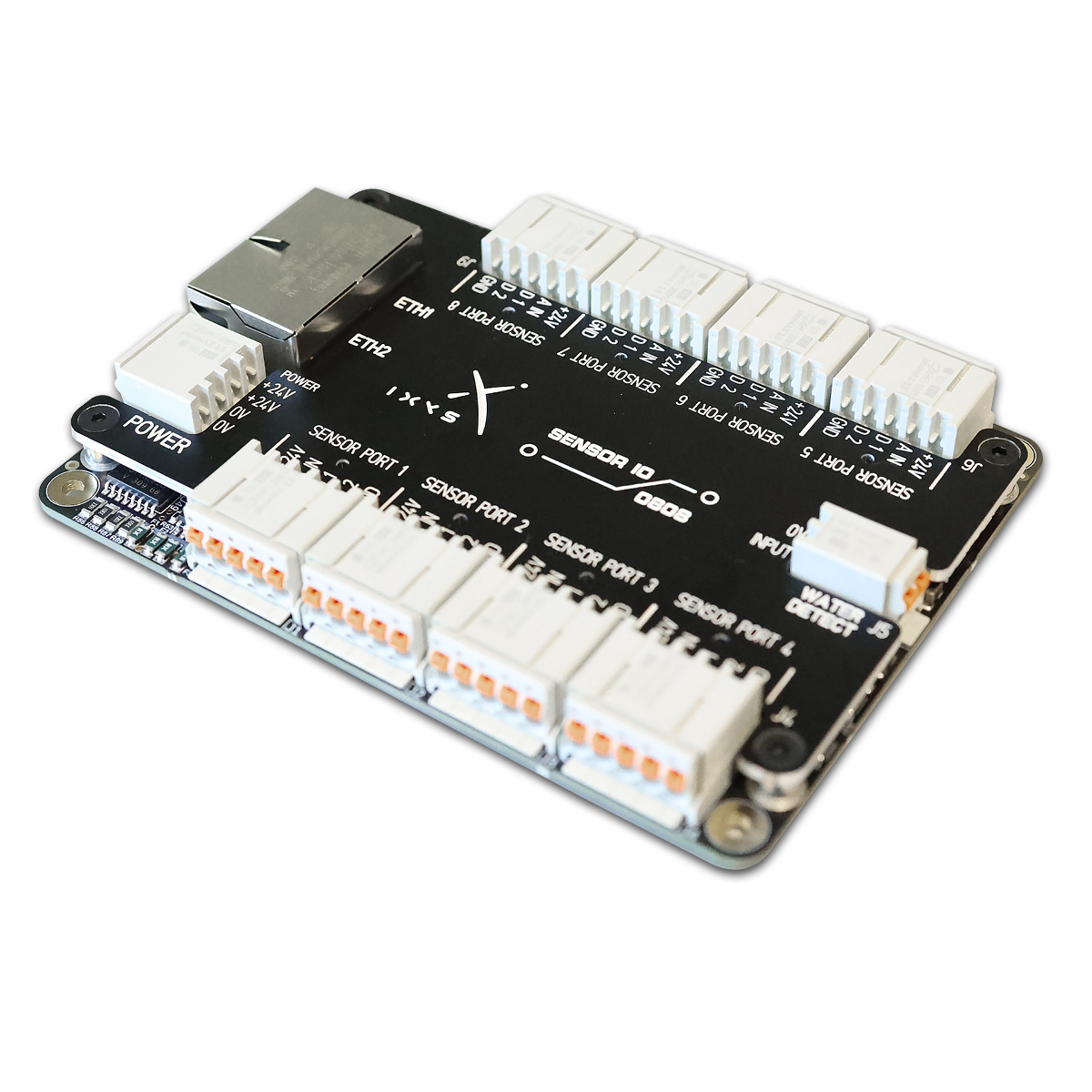

Sensor IO

Features

8 high resolution analog 4-20 mAports
8 ports with dual digital inputs,configurable as NPN or PNP
Ports are galvanically isolatedfrom the board when disabled
Dual ethernet ports with built inswitch
Modbus UDP/TCP Protocol
Web server for easy configuration
LED Indicators for diagnostics
Compact design
Pressure Tolerant
Water Detect

Description

The Sensor IO is a standalone board designed for controlling and reading a wide range of sensors.

It features 8 individual sensor ports; Each sensor port provides:

One analog input (4–20 mA)
Two digital inputs with on/off valuesand pulse counters for encoders or flowmeters
24VDCSupply

The digital inputs can be configured as either NPN or PNP types, with full flexibility available through the integrated web interface. Each port can be disabled, and when disabled it is galvanically isolated from the rest of the board which enables isolation of ground faults.
