Pulse Transceiver

Features

• Transmit and receive digital signals over Ethernet
• Web interface for configuration
• Configurable for pulse or PPS transmission
• Supports Precision Time Protocol (PTP, IEEE 1588 v2)
• LED indicators for diagnostics
• PC/104 hole pattern

Description

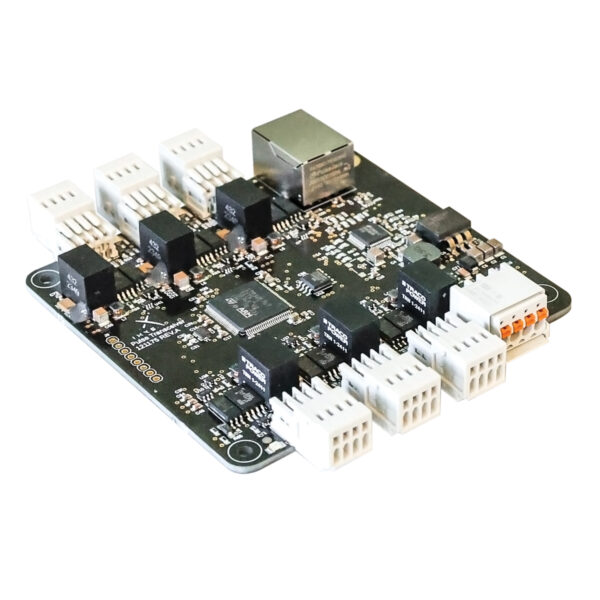

The Pulse Transceiver board is a standalone board used in pairs for sending and receiving digital signals over Ethernet.

By default, all channels are disabled, so the PCB must be configured before first use.

There are essentially two different ways to use the channels on the Pulse Transceiver. Each channel is independent, and can be used in any mode.
