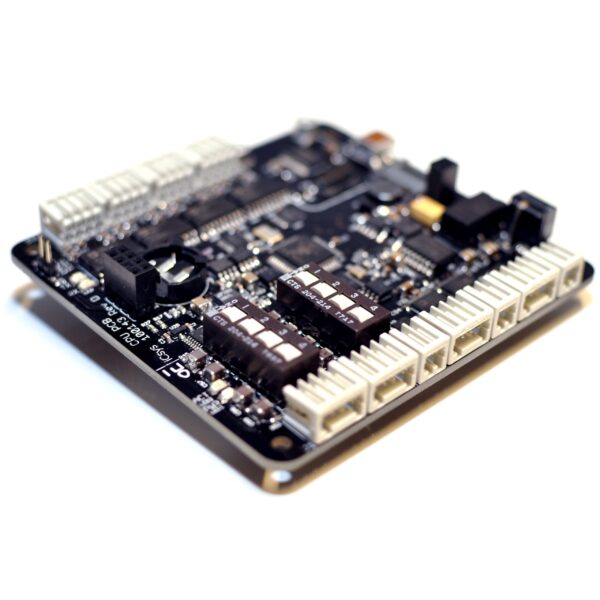

CS CPU PCB

Features

• Control System Master
• LED Indicators for Diagnostics
• Storage to SD card
• Multiple communication options
• PC104 dimensions
• High resolution analog inputs
• Isolated analog outputs
• Real time clock
• Water detect input
• Temperature sensor

Description

The CPU PCB can work as a stand-alone switch or a control system master for external communication and analog I/O. Main communication selection between Ethernet, CAN-Bus, RS485 and RS232 through addon PCB.

The PCB share power and databus with other Ixys Control System boards through stack connectors. The stacking feature enable swift mounting and keeps wiring to a minimum. A complete range of stackable expansion boards are available for various applications.
